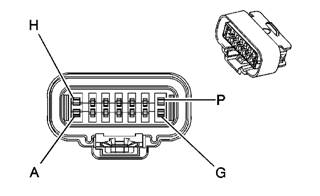

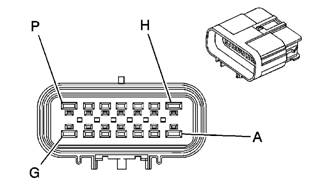

C100 I/P Harness to Engine Harness (w/o JL4)
Object Number: 905452 Size: CH

Object Number: 905450 Size: CH

Connector Part Information 15316037 Connector Part Information 15422562
14-Way F GT Mixed (BK) 14-Way M GT Mixed (BK)

Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A OG 52 Blower Motor High Control A OG 52 Blower Motor High Control
B L-BU 72 Medium 2 Blower Motor Control B L-BU 72 Medium 2 Blower Motor Control
C YE 60 Blower Motor Low Control C YE 60 Blower Motor Low Control
D TN 63 Blower Motor Medium 1 Control D TN 63 Blower Motor Medium 1 Control
E OG 1732 Inadvertent Power Supply Voltage E OG 1732 Inadvertent Power Supply Voltage
F D-GN 1049 Class 2 Serial Data F D-GN 1049 Class 2 Serial Data
G YE 710 Class 2 Serial Data (Early Production) G YE 710 Class 2 Serial Data (Early Production)
H -- -- Not Used H -- -- Not Used
J D-GN/WH 817 Vehicle Speed Signal (K34) J D-GN/WH 817 Vehicle Speed Signal
K BN/WH 419 MIL Control K BN/WH 419 MIL Control
L L-BU/BK 396 Cruise Control Engaged Signal (K34) L L-BU/BK 396 Cruise Control Engaged Signal
M D-GN 83 Cruise Control Inhibit Signal (K34) M D-GN 83 Cruise Control Inhibit Signal
N L-BU 1122 Class 2 Serial Data N L-BU 1122 Class 2 Serial Data
P L-GN 66 A/C Request Signal P L-GN 66 A/C Request Signal (C60)

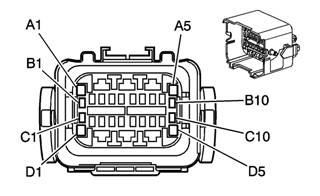

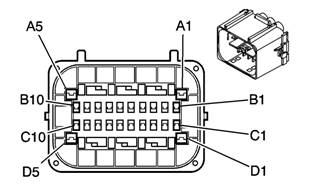

C100 Engine Harness to I/P Harness (JL4)
Object Number: 730856 Size: CH

Object Number: 730855 Size: CH

Connector Part Information 15355480 Connector Part Information 15355479
30-Way F GT 150 SLD (BK) 30-Way M GT 150 SLD (BK)

Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 L-BU 1122 Class 2 Serial Data A1 L-BU 1122 Class 2 Serial Data
A2 RD/BK 4042 Battery Positive Voltage A2 RD/BK 4042 Battery Positive Voltage
A3 OG 52 Blower Motor High Control A3 OG 52 Blower Motor High Control
A4 L-BU 72 Medium 2 Blower Motor Control A4 L-BU 72 Medium 2 Blower Motor Control
A5 L-BU 2206 Traction Control Preference Switch Signal A5 L-BU 2206 Traction Control Preference Switch Signal
B1 GY 626 5-Volt Reference B1 GY 626 5-Volt Reference
B2 L-BU 1059 Steering Wheel Position Sensor Signal 1 B2 L-BU 1059 Steering Wheel Position Sensor Signal 1
B3 L-BU 1764 Steering Wheel Position Signal B B3 L-BU 1764 Steering Wheel Position Signal B
B4 D-BU 84 Cruise Control Set/Coast Switch Signal (K34) B4 D-BU 84 Cruise Control Set/Coast Switch Signal (K34)
B5 D-GN 1049 Class 2 Serial Data B5 D-GN 1049 Class 2 Serial Data
B6 YE 710 Class 2 Serial Data (Early Production) B6 YE 710 Class 2 Serial Data (Early Production)
B7 BN/WH 419 MIL Control B7 BN/WH 419 MIL Control
B8 D-GN 2087 Yaw Rate Sensor 5-Volt Reference B8 D-GN 2087 Yaw Rate Sensor 5-Volt Reference
B9 L-BU 2088 Yaw Rate Sensor Low Reference B9 L-BU 2088 Yaw Rate Sensor Low Reference
B10 L-GN/BK 5352 Sensor Self Test Signal Circuit B10 L-GN/BK 5352 Sensor Self Test Signal Circuit
C1 OG/BK 556 Steering Wheel Position Sensor Low Reference C1 OG/BK 556 Steering Wheel Position Sensor Low Reference
C2 L-GN 1763 Steering Wheel Position Signal A C2 L-GN 1763 Steering Wheel Position Signal A
C3 WH 1765 Steering Wheel Position Marker Pulse Signal C3 WH 1765 Steering Wheel Position Marker Pulse Signal
C4 -- -- Not Used C4 -- -- Not Used
C5 L-GN 66 A/C Request Signal C5 L-GN 66 A/C Request Signal
C6 GY/BK 87 Cruise Control Resume/Accel Switch Signal (K34) C6 GY/BK 87 Cruise Control Resume/Accel Switch Signal (K34)
C7 GY 397 Cruise Control On Switch Signal (K34) C7 GY 397 Cruise Control On Switch Signal (K34)
C8 D-BU 716 Yaw Rate Sensor Signal C8 D-BU 716 Yaw Rate Sensor Signal
C9 L-BU 715 Lateral Accelerometer Signal C9 L-BU 715 Lateral Accelerometer Signal
C10 YE 5353 Yaw Rate Frequency C10 YE 5353 Yaw Rate Frequency
D1 PK 1339 Ignition 1 Voltage D1 PK 1339 Ignition 1 Voltage
D2 YE 60 Blower Motor Low Control D2 YE 60 Blower Motor Low Control
D3 TN 63 Blower Motor Medium 1 Control D3 TN 63 Blower Motor Medium 1 Control
D4 L-BU 1320 CHMSL Supply Voltage/Stop Lamp Supply Voltage D4 L-BU 1320 CHMSL Supply Voltage/Stop Lamp Supply Voltage
D5 OG 1732 Inadvertent Power Supply Voltage D5 OG 1732 Inadvertent Power Supply Voltage

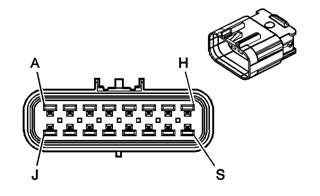

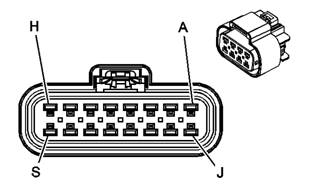

C101 Engine Harness to Chassis Harness (w/o JL4)
Object Number: 847252 Size: CH

Object Number: 847270 Size: CH

Connector Part Information 15326666 Connector Part Information 15326667
16-Way F GT 280 SLD 5.8 (BK) 16-Way M GT 150 SLD 5.8 (BK)

Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A YE/BK 1827 Vehicle Speed Signal A YE/BK 1827 Vehicle Speed Signal
B GY 2709 5-Volt Reference B B GY 2709 5-Volt Reference B
C TN 2759 Low Reference (Late Production) C TN 2759 Low Reference (Late Production)
BK 2759 Low Reference (Early Production) BK 2759 Low Reference (Early Production)
D D-GN 890 Fuel Tank Pressure Sensor Signal D D-GN 890 Fuel Tank Pressure Sensor Signal
E PU 333 Brake Fluid Level Switch Signal (Heavy Duty) E PU 333 Brake Fluid Level Switch Signal (Heavy Duty)
F PU 1589 Fuel Level Sensor Signal F PU 1589 Fuel Level Sensor Signal
G -- -- Not Used G -- -- Not Used
H WH 1310 EVAP Canister Vent Solenoid Control H WH 1310 EVAP Canister Vent Solenoid Control
J RD/WH 140 Battery Positive Voltage (Late Production) J RD/WH 140 Battery Positive Voltage (Late Production)
OG 140 Battery Positive Voltage (Early Production) OG 140 Battery Positive Voltage (Early Production)
K L-BU 1122 Class 2 Serial Data K L-BU 1122 Class 2 Serial Data
L-S -- -- Not Used L-S -- -- Not Used



C101 Chassis Harness to Engine Harness (JL4)
Object Number: 730856 Size: CH

Object Number: 730855 Size: CH

Connector Part Information 15355480 Connector Part Information 15355479
30-Way F GT 150 SLD (BK) 30-Way M GT 150 SLD (BK)

Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 D-GN 2087 Yaw Rate Sensor 5-Volt Reference A1 D-GN 2087 Yaw Rate Sensor 5-Volt Reference
A2 L-BU 2088 Yaw Rate Sensor Low Reference A2 L-BU 2088 Yaw Rate Sensor Low Reference
A3 L-GN/BK 5352 Sensor Self Test Signal Circuit A3 L-GN/BK 5352 Sensor Self Test Signal Circuit
A4 YE/BK 1827 Vehicle Speed Signal A4 YE/BK 1827 Vehicle Speed Signal
A5 GY 2709 5-Volt Reference B A5 GY 2709 5-Volt Reference B
B1 TN 2759 Low Reference B1 TN 2759 Low Reference
B2 WH 1765 Steering Wheel Position Marker Pulse Signal B2 WH 1765 Steering Wheel Position Marker Pulse Signal
B3-B4 -- -- Not Used B3-B4 -- -- Not Used
B5 D-GN 890 Fuel Tank Pressure Sensor Signal B5 D-GN 890 Fuel Tank Pressure Sensor Signal
B6 PU 333 Brake Fluid Level Switch Signal (Heavy Duty) B6 PU 333 Brake Fluid Level Switch Signal (Heavy Duty)
B7 PU 1589 Fuel Level Sensor Signal B7 PU 1589 Fuel Level Sensor Signal
B8 GY 626 5-Volt Reference B8 GY 626 5-Volt Reference
B9 L-BU 1059 Steering Wheel Position Sensor Signal 1 B9 L-BU 1059 Steering Wheel Position Sensor Signal 1
B10 L-BU 1764 Steering Wheel Position Signal B B10 L-BU 1764 Steering Wheel Position Signal B
C1 D-BU 716 Yaw Rate Sensor Signal C1 D-BU 716 Yaw Rate Sensor Signal
C2 L-BU 715 Lateral Accelerometer Signal C2 L-BU 715 Lateral Accelerometer Signal
C3 YE 5353 Yaw Rate Frequency C3 YE 5353 Yaw Rate Frequency
C4 WH 1310 EVAP Canister Vent Solenoid Control C4 WH 1310 EVAP Canister Vent Solenoid Control
C5 RD/WH 140 Battery Positive Voltage C5 RD/WH 140 Battery Positive Voltage
C6 L-BU 1122 Class 2 Serial Data C6 L-BU 1122 Class 2 Serial Data
C7 TN/BK 464 Delivered Torque Signal C7 TN/BK 464 Delivered Torque Signal
C8 OG/BK 463 Requested Torque Signal C8 OG/BK 463 Requested Torque Signal
C9 L-BU 2206 Traction Control Preference Switch Signal C9 L-BU 2206 Traction Control Preference Switch Signal
C10 OG/BK 556 Steering Wheel Position Sensor Low Reference C10 OG/BK 556 Steering Wheel Position Sensor Low Reference
D1 L-GN 1763 Steering Wheel Position Signal A D1 L-GN 1763 Steering Wheel Position Signal A
D2 BK 2150 Ground D2 -- -- Not Used
D3 RD/BK 4042 Battery Positive Voltage D3 RD/BK 4042 Battery Positive Voltage
D4-D5 -- -- Not Used D4-D5 -- -- Not Used



Fuse Block - Underhood - C1
Object Number: 647955 Size: CH
Connector Part Information
15319897
68-Way F Metri-Pack 280 Series- Flexlock (L-GY)

Pin Wire Color Circuit No. Function
A1 -- -- Not Used
A2 YE/BK 625 Starter Enable Relay Control
A3-A7 -- -- Not Used
A8 PU 420 TCC Brake Switch/Cruise Control Release Signal
A9 L-GN 275 Park Neutral Position Switch Park Signal
A10 RD/WH 440 Battery Positive Voltage (Late Production)
RD/WH 440 Battery Positive Voltage (Late Production)
OG 440 Battery Positive Voltage (Early Production)
OG 440 Battery Positive Voltage (Early Production)
A11-A12 -- -- Not Used
B1 -- -- Not Used
B2 D-GN 1433 Neutral Safety Back Up Switch Signal
B3 -- -- Not Used
B4 PK 139 Ignition 1 Voltage
PK 139 Ignition 1 Voltage (4.8L/5.3L/6.0L)
B5-B9 -- -- Not Used
B10 PU 806 Crank Voltage
B11-B12 -- -- Not Used
C1 PU 6 Starter Solenoid Crank Voltage
C2 BK 1250 Ground
C3 PK 339 Ignition 1 Voltage
C4 PK 139 Ignition 1 Voltage
PK 139 Ignition 1 Voltage
C5-C9 -- -- Not Used
C10 PK 239 Ignition 1 Voltage
C11-C12 -- -- Not Used
D1-D3 -- -- Not Used
D4 PK 139 Ignition 1 Voltage
PK 139 Ignition 1 Voltage
D5-D9 -- -- Not Used
D10 PK 239 Ignition 1 Voltage
PK 239 Ignition 1 Voltage (4.8L/5.3L/6.0L)
D11 -- -- Not Used
D12 D-GN/WH 459 A/C Compressor Clutch Relay Control (C60)
E1 PK 539 Ignition 1 Voltage
PK 539 Ignition 1 Voltage
E2 PK 439 Ignition 1 Voltage
E3 -- -- Not Used
E4 PK 139 Ignition 1 Voltage
PK 139 Ignition 1 Voltage
E5 -- -- Not Used
E6 RD/WH 140 Battery Positive Voltage (Late Production)
OG 140 Battery Positive Voltage (Early Production)
E7-E9 -- -- Not Used
E10 PK 239 Ignition 1 Voltage
PK 239 Ignition 1 Voltage
E11-E12 -- -- Not Used
F1 PK 1539 Ignition 1 Voltage
PK 1539 Ignition 1 Voltage
F2 -- -- Not Used
F3 PK 1020 Ignition 0 Voltage
PK 1020 Ignition 0 Voltage
F4 D-GN 1329 Horn Fuse Supply Voltage
F5-F7 -- -- Not Used
F8 D-GN/WH 465 Fuel Pump Relay Control - Primary
F9-F10 -- -- Not Used
F11 D-GN 1324 Backup Lamp Supply Voltage (Late Production)
L-GN 1324 Backup Lamp Supply Voltage (Early Production)
F12 D-GN 59 A/C Compressor Clutch Supply Voltage (C60)
