| Connector Part Information |
 | 12146281 |

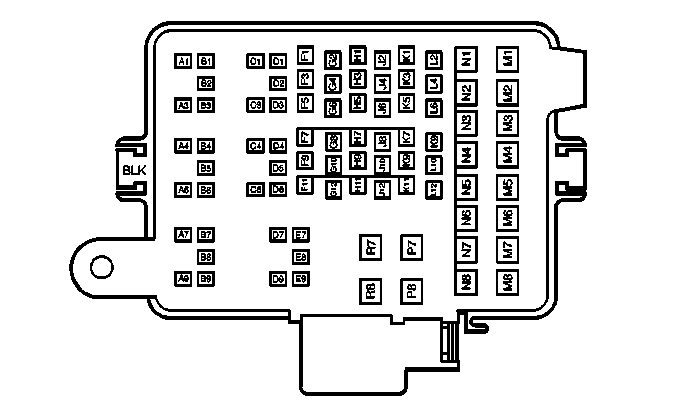

| Electrical Center (BLK) |
|
| Pin |
Wire Color |
Circuit No. |
Function |
| A1 |
BLK/WHT |
451 |
Engine Control Module Ground |
| A3 |
GRY |
120 |
Fuel Pump Motor Feed |
| A4 |
PNK |
639 |
Fuse Output - IGN 1 - Type III Fuse |
| A6 |
DK GRN |
59 |
A/C Compressor Clutch Solenoid Feed |
| A7 |
BLK |
150 |
Ground |
| A9 |
RED |
242 |
Fuse Output - Battery - Type II Fuse (7.4L
Only) |
| B1 |
ORN |
440 |
Fuse Output - Battery - Type III Fuse |
| B2 |
RED |
490 |
Fuel Pump Relay Feed - Primer |
| B3 |
DK GRN/WHT |
465 |
Fuel Pump Relay Feed (Coil) |
| B4 |
ORN |
1240 |
Fuse Output - Battery - Type III Fuse |
| B5 |
-- |
-- |
Not Used |
| B6 |
DK GRN/WHT |
459 |
A/C Compressor Control Relay Output -Coil |
| B7 |
PPL |
6 |
Starter Solenoid Feed |
| B8 |
-- |
-- |
Not Used |
| B9 |
PPL/WHT |
1035 |
Starter Relay Feed - Coil |
| C1 |
BLK |
28 |
Horn Relay Output-(Coil) |
| C3 |
ORN |
740 |
Fuse Output - Battery - Type III Fuse |
| C4 |
BRN |
436 |
Air Injection Reaction Pump Motor Relay
Output-Coil (7.4L Only) |
| C6 |
PNK |
639 |
Fuse Output - IGN 1 - Type III Fuse |
| D1 |
DK GRN |
29 |
Horn Feed |
| D2 |
-- |
-- |
Not Used |
| D3 |
ORN |
740 |
Fuse Output - Battery - Type III Fuse (7.4L
Only) |
| D4 |
RED |
78 |
Air Injection Reaction Pump Motor Feed
(7.4L Only) |
| D5 |
-- |
-- |
Not Used |
| D6 |
PNK |
639 |
Fuse Output- Ignition 1-Type III Fuse (7.4L
Only) |
| D7 |
WHT |
17 |
Stop Lamp Switch Output (Pick-Up Only) |
| D9 |
LT BLU |
20 |
Stop Lamp Feed (Pick-Up Only) |
| E7 |
RED |
642 |
Fuse Output - Battery Type III Fuset
(Pick-Up Only) |
| E8 |
-- |
-- |
Not Used |
| E9 |
BLK |
150 |
Ground |
| F1-F11 |
-- |
-- |
Not Used |
| G2-G6 |
-- |
-- |
Not Used |
| G8 |
PNK |
639 |
Fuse Output - IGN 1-Type III Fuse |
| G10 |
ORN |
1440 |
Fuse Output - Battery - Type III Fuse |
| G12 |
ORN |
440 |
Fuse Output - Battery - Type III Fuse
(PCM 12v+ Battery Feed) |
| H1-H5 |
-- |
-- |
Not Used |
| H7 |
PNK |
3 |
Ignition Swith Output - Ignition 1 |
| H9 |
RED |
2 |
Fuse Output - Battery - Type 1 Fuse |
| H11 |
RED |
2 |
Fuse Output - Battery - Type 1 Fuse |
| J2 |
-- |
-- |
Not Used |
| J4 |
-- |
-- |
Not Used |
| J6 |
ORN |
1840 |
Fuse Output - Battery -Type III Fuse (5.0L,
5.7L Only) |
| J8 |
PNK |
439 |
Fuse Output - IGN 1 - Type III Fuse
(PCM 12v+ Key Feed) |
| J10 |
ORN |
1540 |
Fuse Output - Battery - Type III Fuse
(w/Auxiliary Cooling Fan Only) |
| J12 |
ORN |
740 |
Fuse Output - Battery - Type III Fuse |
| K1 |
PPL |
680 |
ABS pressure Differential Sensor Signal
(7.4L Only) |
| K3 |
-- |
-- |
Not Used |
| K5 |
RED |
742 |
Fuse Output - Battery - Type II Fuse
(Luxury Only) |
| K7-K11 |
-- |
-- |
Not Used |
| L2 |
TAN/WHT |
33 |
Brake Warning Indicator Lamp Output (15,000
GVW Only) |
| L4 |
-- |
-- |
Not Used |
| L6 |
ORN |
1940 |
Fuse Output - Battery - Type III Fuse
(Luxury Only) |
| L8 |
PNK |
539 |
Fuse Output - IGN 1 - Type II Fuse |
| L10 |
ORN |
1040 |
Fuse Output - Battery - Type III Fuse (5.0L
, 5.7L Only) |
| L12 |
ORN |
1240 |
Fuse Output - Battery - Type III Fuse |
| M1 |
RED |
742 |
Fuse Output - Battery - Type II Fuse (5.0L,
5.7L Only) |
| M2 |
RED |
642 |
Fuse Output - Battery - Type II Fuse
(Pick-Up Only) |
| M3 |
RED |
542 |
Fuse Output - Battery - Type II Fuse |
| M4 |
RED |
442 |
Fuse Output - Battery - Type II Fuse |
| M5 |
RED |
342 |
Fuse Output - Battery - Type II Fuse |
| M6 |
RED |
242 |
Fuse Output - Battery - Type II Fuse |
| M7 |
RED |
142 |
Fuse Output - Battery - Type II Fuse |
| M8 |
RED |
42 |
Fuse Output - Battery - Type II Fuse |
